Application: Computer
The file is encrypted. Please fill in the following information to continue accessing it

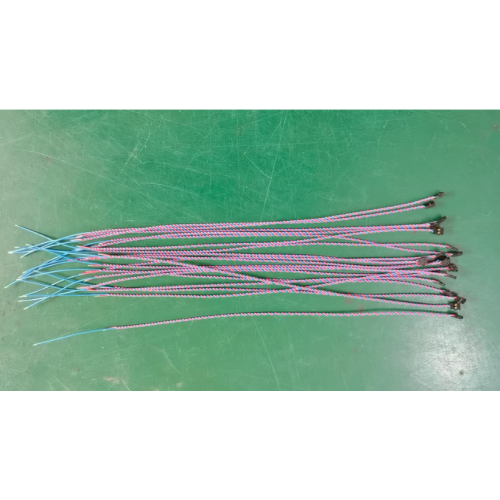

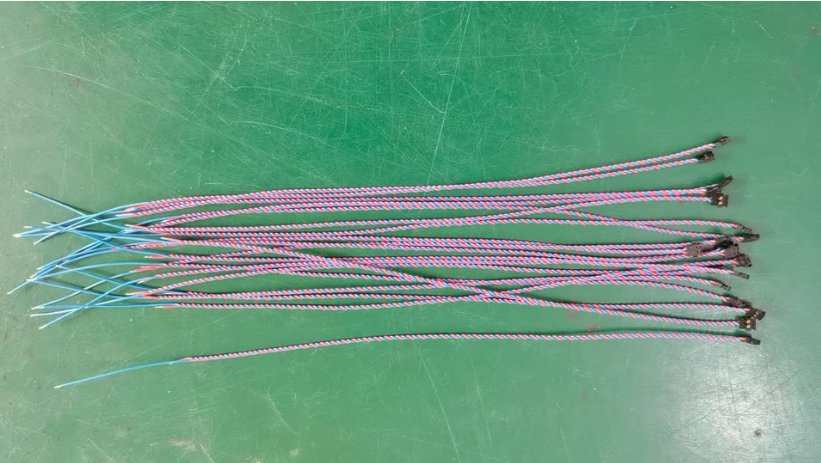

Core Positioning: An original-grade audio cable harness specifically designed for various Samsung laptop series. It enables high-fidelity audio signal transmission between the motherboard and built-in speakers through high-purity oxygen-free copper conductors and precise CONNECTORS. It resolves issues like sound distortion, mono-channel failure, or current noise caused by harness aging or poor contact, ensuring an authentic Samsung audio experience.
Core Functions:
a. High-Fidelity Sound Transmission: Low-resistance conductors ensure lossless audio signal transmission, reproducing sound details.
b. Stable Connection: Precision terminals and interface alignment design prevent loosening, ensuring long-term connection reliability.
c. Anti-Interference Design: Optional shielded structure effectively resists internal electromagnetic interference (EMI) in laptops, delivering pure sound quality.
2、Technical Specifications
| Technical Indicator | Standard Value | Industry Application Points |
|---|---|---|
| Conductor | 99.9% Oxygen-Free Copper | Ensures low-loss audio signal transmission, superior to copper-clad aluminum. |
| Material | ||
| Wire Gauge (AWG) | 28AWG/30AWG | Extremely fine, adapts to the compact internal layout of laptops. |
| Insulation Material | PVC/PE | Soft and flexible, withstands repeated bending during repairs and disassembly. |
| Shielding Type | None/Aluminum Foil | Equipped on high-end models, effectively suppresses Electromagnetic Interference (EMI). |
| Terminals | Customized Gold-Plated | Precisely aligns with Samsung motherboard and speaker interfaces, foolproof design. |
| Cable Outer Diameter | ≤2.5mm | Ultra-flexible and thin design, easy for routing and securing in tight spaces. |
3、Product Features & Advantages
(1) Core Features
Precise Interface Alignment: Terminal structure is a 1:1 replica of the original Samsung interface, ensuring perfect fit and easy installation, preventing damage from mismatched connectors.
High-Fidelity Audio Transmission: Utilizes oxygen-free copper conductors for minimal signal loss, effectively preserving the sound quality of the Samsung laptop's original audio system.
Durable and Flexible Design: Flexible cable body resistant to repeated bending, coupled with flame-retardant insulation, enhances long-term reliability in compact, high-temperature chassis.
(2) Our Product's Unique Advantages
Original-Grade Compatibility: Developed specifically using Samsung laptop model databases, compatibility is strictly tested, achieving over 99.9% match rate.
Rapid Customization Capability: Supports small-batch model customization, providing precise cable lengths and interface combinations to meet diverse repair market needs.
Quality & Efficiency Value: Original-grade quality ensures a one-time fix, eliminating the hassle of repeated repairs and significantly improving repair efficiency and customer satisfaction.
Cost Value: Replacing the dedicated harness is a highly cost-effective solution compared to replacing the entire motherboard or speaker module.
Supply Assurance: Stable inventory and fast delivery cycles ensure the continuity of your repair business and the reliability of spare part supply.
Q: How can I confirm if this harness is compatible with my specific Samsung laptop model?
A: Please provide the complete model number of your laptop (usually found on the bottom label). Our customer service will assist you with precise matching. We maintain a comprehensive Samsung model database for verification.
Q: There is no sound from one side after installing the harness. What could be the reason?
A: First, check if the interfaces are fully inserted. Secondly, ensure the terminal pins are not bent or damaged during installation. Finally, troubleshoot whether the issue lies with the speaker itself or the motherboard's audio chip.
Q: Can harnesses of different lengths be customized?
A: Yes. We support custom lengths (±1cm error) based on your repair needs. The Minimum Order Quantity (MOQ) is 50 pieces. Sample lead time is approximately 3-5 working days.
