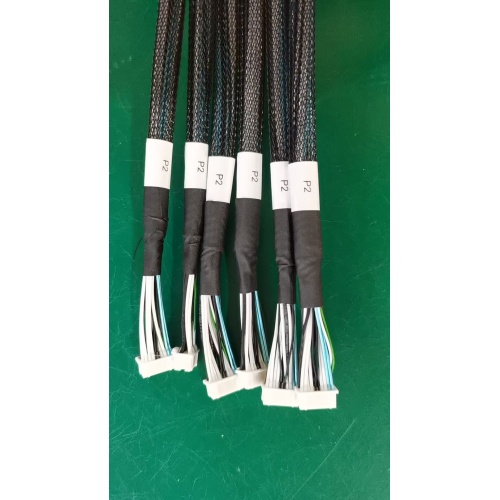

Computer server wiring harness

III. Typical Example

Example: Hard Drive Backplane Power Harness in a 2U Rackmount Server

• Scenario: Supplies 12V and 5V power from the motherboard or power board to an 8-port SAS hard drive backplane.

• Advantage: One harness replaces 8 individual power cables, saving space and using high-current terminals to prevent overheating.

• Disadvantage: If one contact in the harness fails, the corresponding hard drive may drop out, but it is difficult to quickly determine whether the issue is with the harness or the backplane.

Summary

Computer server wiring harnesses offer significant advantages in high-density, high-reliability, and standardized production environments, making them ideal for data centers, branded servers, and industrial control applications. However, for small-batch, non-standard, or frequently changing designs, they may face challenges in cost and compatibility. When selecting a harness, factors such as system layout, cooling requirements, maintenance strategy, and cost budget should be carefully considered.
