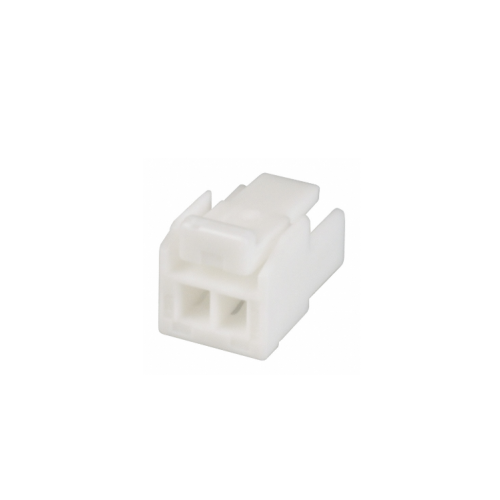

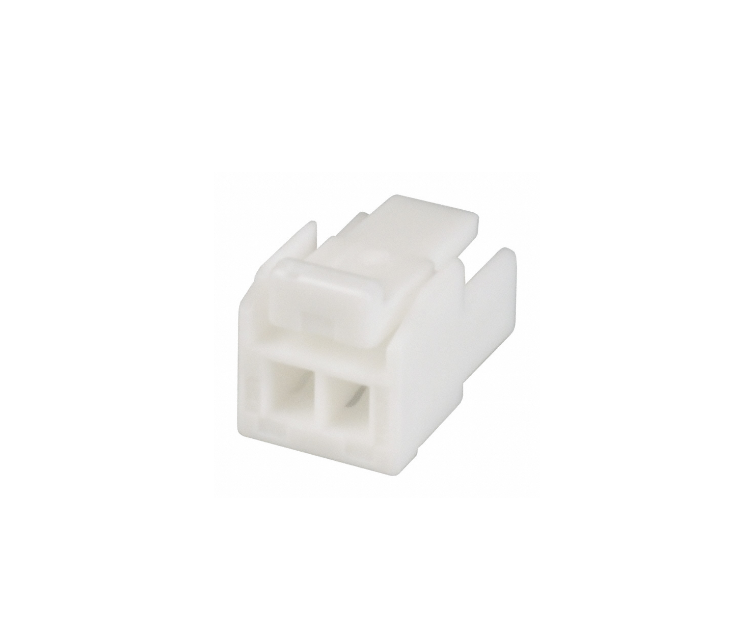

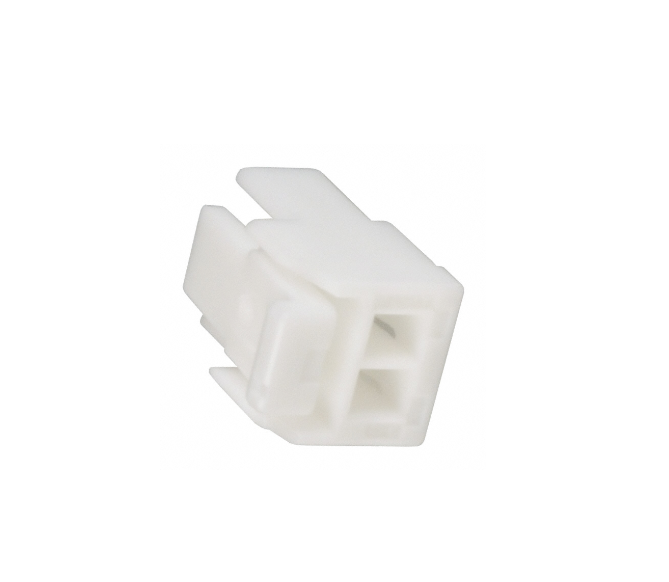

1.25 Wire-to-Board Connector Housing



The 1.25 Wire-to-Board Connector Housing GHR-02V-S is a miniature 1.25 mm pitch wire-to-board connector designed for internal wiring in compact electronic and electrical devices. This JST connector features a robust locking mechanism, ensuring a stable connection in high-density applications. Shanghua's high-quality JST connector ZHR-3, with its excellent electrical performance and mechanical stability, offers a JST Connectors solution for customers who require a highly reliable connection, even in high-vibration environments.





Compact, High-Density Design: The 1.25 mm pitch allows for compact PCB layouts without sacrificing performance, making it ideal for handheld or space-constrained devices.

Secure Locking Structure: A built-in friction lock prevents accidental disconnection and ensures a long-term, stable connection under shock or vibration conditions.

Easy Insertion and Removal: The low insertion force contact structure simplifies assembly and maintenance, while a clear "click" audible feedback minimizes the risk of incomplete insertion.

Durable Construction: Crafted from flame-retardant, high-temperature resistant nylon, combined with high-quality copper alloy contact terminals, the terminal surface plating offers excellent conductivity and corrosion resistance.

Reliable Performance: Designed to maintain stable contact resistance and insulation performance under a wide range of temperature and humidity conditions.







Our factory offers complete OEM/ODM customization services for terminal CONNECTORS, providing a one-stop solution for 3-pin JST connector ZHR-3 products. Leveraging our comprehensive equipment, including a FULLY AUTOMATIC TERMINAL DIPPING MACHINE, we provide mold development, precision stamping, injection molding, and automated assembly. We support rapid prototyping, small batch samples, and mass production.
