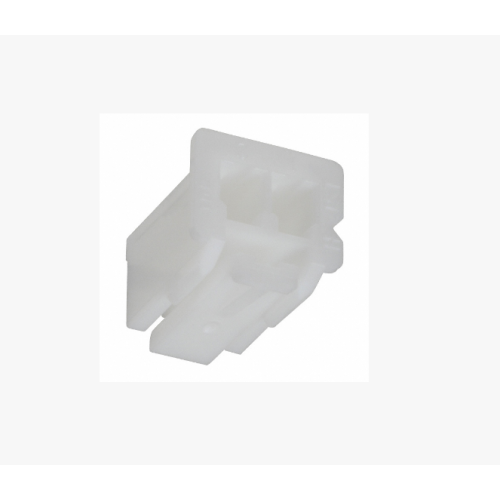

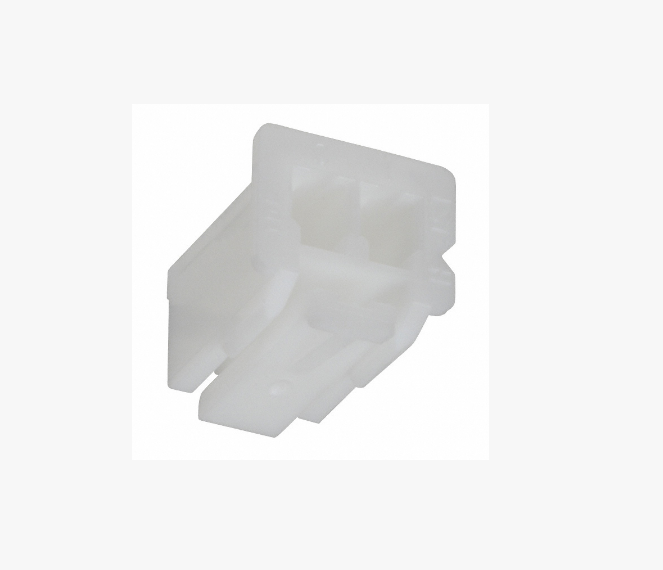

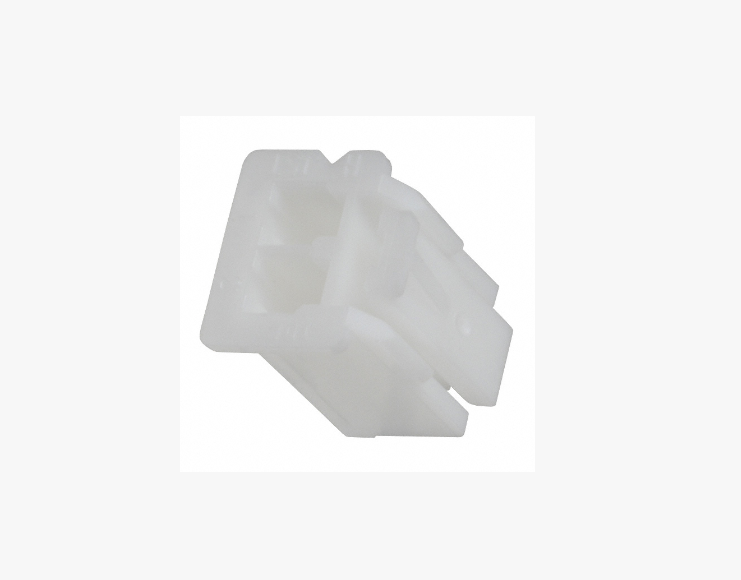

The JST XAP-02V-1 is a 2-position (2P) housing belonging to the JST XAP series connector family, featuring a compact 2.5mm pitch design suitable for space-constrained electrical connection applications. Constructed from high-performance PA (nylon) or PBT material, this housing offers excellent high-temperature resistance (operating range: -25°C to +85°C) and flame-retardant properties (compliant with UL94V-0 standards), ensuring reliability and safety in industrial and consumer electronics applications.
The housing incorporates a foolproof polarization slot and a single-side locking mechanism, ensuring secure mating with compatible XA/XAP series terminals (e.g., SXH-002T-P0.6) while preventing accidental disconnection due to vibration. It accommodates wire gauges from AWG28 to AWG22 and is rated for 3A/250V, making it ideal for low-current signal transmission in applications such as PCB interconnects, sensor modules, power management, and LED lighting.
For optimal performance, it is recommended to use genuine JST terminals and adhere to standardized crimping processes. Detailed technical specifications can be found in the official JST XAP series datasheet.
Why Choose Suntex Electronics for JST Connectors?
Expertise and Experience: Our team of skilled engineers and technicians has extensive experience in the design and manufacturing of JST Connectors. We leverage this expertise to deliver products that are tailored to your specific needs.
Quality Assurance: Every JST Connector we produce undergoes rigorous quality control processes, including in-line inspections and final testing, to ensure flawless performance and reliability.
Comprehensive Solutions: From connectors to wire harness processing equipment, we provide a one-stop solution for all your wire harness needs. This includes everything from design and prototyping to mass production and testing
Main brands: MOLEX, JST, TE, KET
Please consult customer service for more models.
Welcome to send your Bill of Materials BOM.
