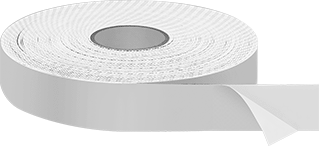

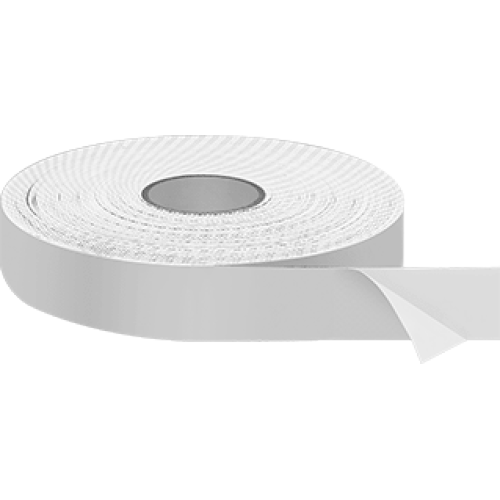

Foam Mounting Tape

Get Latest Price

Incoterm:

EXW

Min. Order:

Transportation:

Ocean,Land,Air,Express

Port:

SHEKOU

This high-performance double-sided foam tape is engineered to deliver robust bonding and versatile cushioning, designed to meet the complex demands of industrial assembly and commercial mounting applications.

Product Overview & Core Applications

This tape is constructed with a foam carrier coated on both sides with pressure-sensitive adhesive. It is specifically formulated to create strong, durable bonds on rigid surfaces such as metal, glass, plastic, ceramic, and clean walls. It is ideally suited for "tool-free" or "drill-free" mounting, making it perfect for installing panels, signage, displays, dispensers, lightweight shelving, decorative trim, and control panels. By eliminating the need for mechanical Fasteners like screws or anchors, it simplifies installation, improves efficiency, and preserves the clean aesthetics of the mounting surface.

Core Features & Structural Advantages

1. High-Strength Holding Power: Both sides are coated with a specially formulated pressure-sensitive adhesive that offers excellent initial tack and ultimate peel strength. It creates reliable, long-lasting bonds on a wide variety of substrates, providing exceptional resistance to sagging or displacement caused by gravity or vibration—even for vertically or overhead-mounted objects.

2. Superior Shock Absorption & Stress Distribution: A key function of the foam core is to absorb impact and dampen vibrations. During equipment operation, door movement, or environmental shocks, the compressible foam layer dissipates energy through elastic deformation. This protects mounted components from stress concentration and damage, making it ideal for securing delicate instruments or fragile materials.

3. Excellent Conformability: The foam's flexibility allows it to closely conform to slightly irregular or textured rigid surfaces. It fills microscopic gaps, increasing the effective bonding area and enhancing overall adhesion strength and sealing performance.

Critical Distinction: Open-Cell vs. Closed-Cell Foam Options

The product's versatility is further extended by offering a choice between Open-Cell Foam and Closed-Cell Foam, enabling precise selection based on environmental requirements:

• Open-Cell Foam Tape: This type features an interconnected porous structure that allows the passage of gases, moisture vapor, and air. This characteristic makes it particularly suitable for:

◦ Applications requiring breathability or pressure equalization, such as bonding certain electronic enclosures to prevent pressure buildup.

◦ Temporary bonding or applications where removability is desired, as it often allows for cleaner removal and is less prone to moisture entrapment under thermal cycling.

◦ Controlled indoor environments with stable temperature and humidity levels.

• Closed-Cell Foam Tape: This variant consists of sealed, independent foam cells that create a barrier, effectively restricting the absorption and permeation of liquids, moisture, and air. This grants it broader applicability:

◦ Outdoor and harsh environment applications: Its excellent moisture and water resistance allows it to withstand exposure to rain, humidity, and weathering, preventing adhesive failure due to water ingress.

◦ Applications requiring long-term durability: It offers better resistance to UV exposure, temperature fluctuations, and chemical agents, ensuring stable performance over time.

◦ Scenarios needing light sealing: It can provide incidental benefits like dust sealing, sound dampening, or cushioned gasketing alongside its primary bonding function.
