Low-Pressure Stainless Steel Threaded Pipe Fittings

Name: Low-Pressure Stainless Steel Threaded Pipe Fittings
Brand: Hongkong Suntex Electronic Co., Ltd.
Rating: 4.9 (28 reviews)

Get Latest Price

Incoterm:	EXW
Min. Order:	1
Transportation:	Ocean,Land,Air,Express

Contact Now

Product Description

Product Attributes

Packaging & Delivery

Product Description

Product Attributes

Brand: McMaster-Carr

Packaging & Delivery

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

Use these fittings in a low-pressure pipe line.

Fittings that meet ANSI/MSS SP-114 adhere to high-quality standards for heat treating, material thickness, and marking. 304 stainless steel fittings have very good corrosion resistance. 316 stainless steel fittings have excellent corrosion resistance.

Through-wall fittings are also known as bulkhead couplings; they mount through your wall or tank to create an inlet or outlet.When installing, the gasket should be on the inside of the tank.

Union CONNECTORS separate into three pieces so you can access your line without unthreading pipe connections.

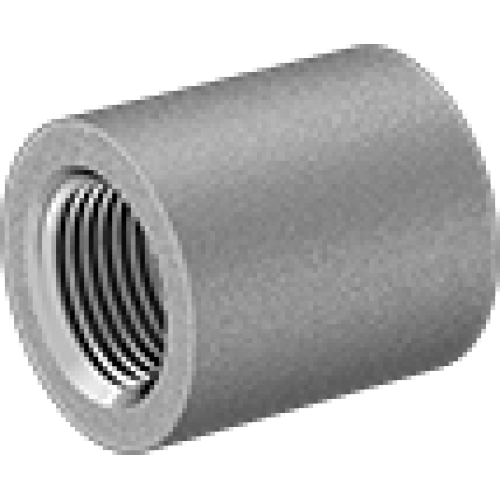

Threaded female x butt weld straight adapters are also known as half couplings. Adapters with weld end allow for a permanent connection.

Adapters for tanks create an inlet or outlet connection on the surface of any tank, pressure vessel, or drum. Adapters with extension fit tightly into the hole, which keeps the fitting steady during welding. Through-wall bolt-on adapters for tanks can be tightened and adjusted from the outside so you don’t have to drain your line.

Locknuts thread onto the male end of a fitting to provide extra holding power so the fitting won’t loosen from vibration. Locknuts that meet DIN 431 comply with international standards for pipe fitting locknut dimensions.

Female x male 90° elbow adapters are also known as street elbows.

Inline tees are also known as branch tees.

Plugs with magnet attract metal debris that could otherwise damage your system.

Plugs with copper washer form a tight seal to prevent leaks. Also known as a crush washer, the washer compresses and deforms to fill gaps when tightened. Because it loses its shape when compressed, it’s not reusable. Made of copper, the washer resists rust. These plugs meet either DIN 908 or DIN 910, international standards for pipe plug dimensions.

NPTF (Dryseal) threads and NPSL (National Pipe Straight Locknut) threads are compatible with NPT threads.
